Main control chip	RM1211(HUB CHIP)+STM32F100C8T6

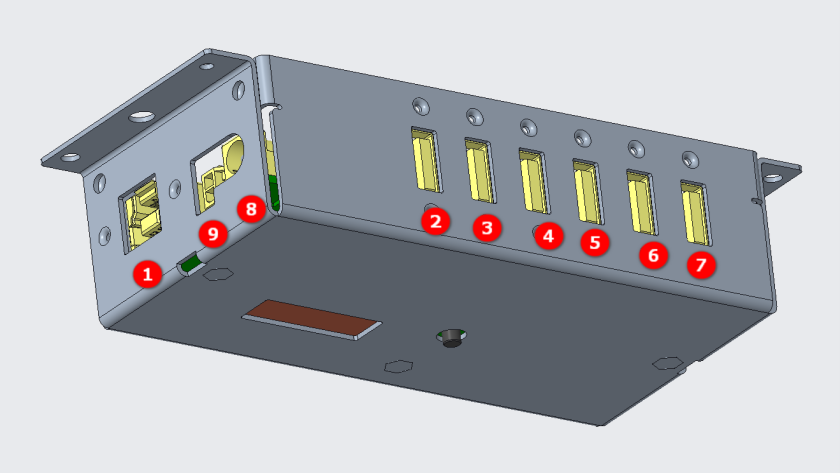

Uplink interface	data transfer	❶	Type-B	data transfer	Supports USB 3.0 5Gbps transfer rate, backward compatible with USB 3.0/USB 2.0/1.1/1.0
Downlink interface	data transfer	❷❸ ❹❺❻❼	USB-A	data transfer	Supports USB 3.0 5Gbps transfer rate, backward compatible with USB 3.0/USB 2.0/1.1/1.0
				power	5V 0.9A
	charging input	❾	2P connector	power	Maximum input 12V/3A (36W)
		❾	DC 5.5	power	Maximum input 12V/3A (36W)
Operating system used				Windows OS 7/8/10/11 (X86/X64)，Mac OS 10.2 and above，Chrome OS， Linux and so on
Application scenarios				This product is mainly used in cargo sorting and barcode scanning robots.

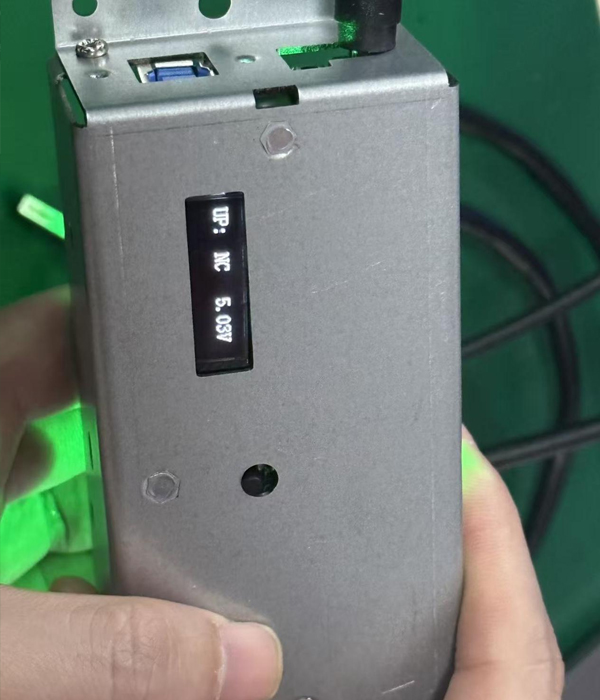

This product is a customized industrial-grade hub specifically designed for Jabil's logistics robots. It transmits image information captured by the robot's camera to the host unit. It also features voltage and current limiting designs as required, and is equipped with an LCD screen, allowing for simultaneous monitoring of voltage and current on both the host unit and the screen.
