Industrial-grade USB-C 3.2 HUB
Customized host computer software;
Real-time monitoring of displayed voltage and current;
Overvoltage and overcurrent protection；
The number of interfaces can be customized；
The host computer interface model can be customized.

Main control chip	RM1211(HUB CHIP)+STM32F100C8T6

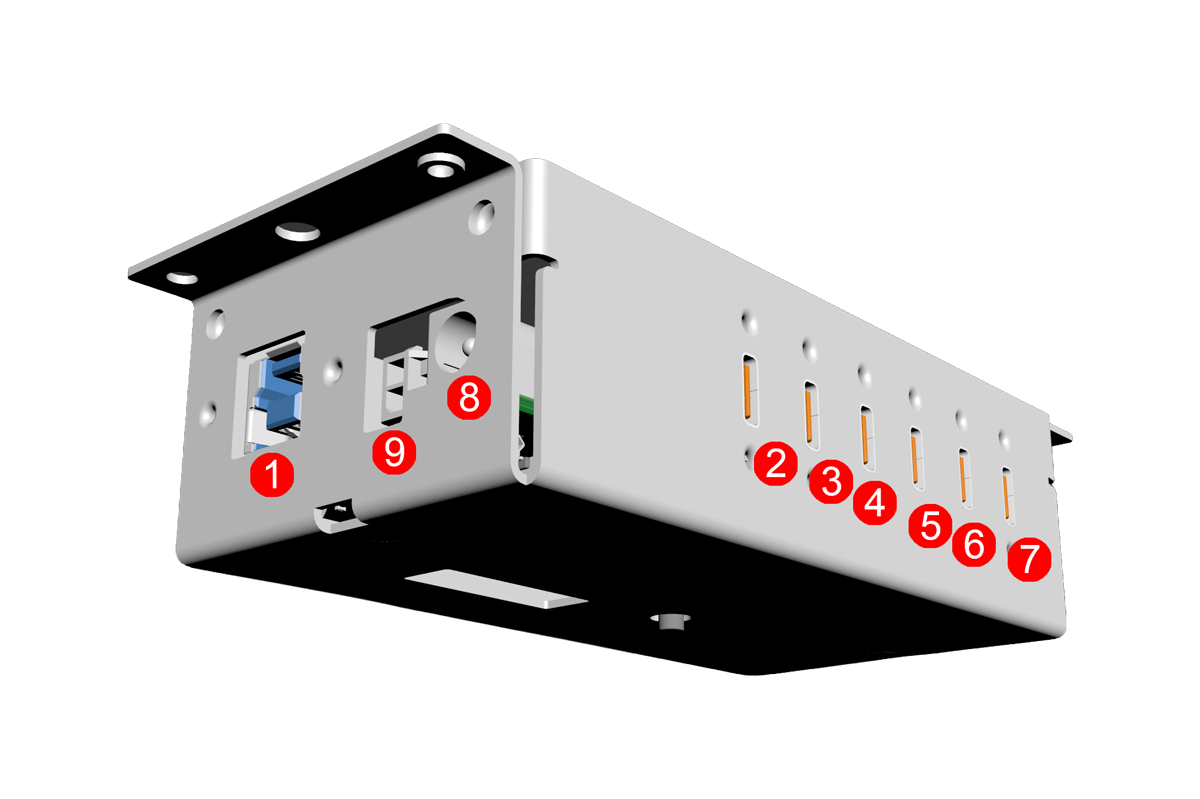

Uplink interface	data transfer	❶	Type-C	data transfer	Supports USB 3.2 10Gbps transfer rate, backward compatible with USB 3.2 /3.0/USB 2.0/1.1/1.0
Downlink interface	data transfer	❷❸ ❹❺❻❼	USB-C	data transfer	Supports USB 3.2 10Gbps transfer rate, backward compatible with USB 3.2/3.0/USB 2.0/1.1/1.0
				power	5V 0.9A
	charging input	❾	2P connector	power	Maximum input 12V/3A (36W)
		❾	DC 5.5	power	Maximum input 12V/3A (36W)
Operating system used				Windows OS 7/8/10/11 (X86/X64)，Mac OS 10.2 and above，Chrome OS， Linux and so on
Application scenarios				Industrial control category


This product accepts various customization requests, such as:
1. Host computer software programming
2. Overvoltage and overcurrent protection
3. Limiting rated voltage and current as required
4. Customizable LCD screen for real-time voltage and current monitoring
5. Customizable casing material and many other customization requests.
